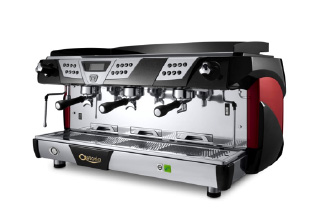

Astoria – Plus 4 You


Astoria is a historic brand in the Italian tradition of professional espresso machines. Since 1969, it has been owned by the Dal Tio family and since then a long period of growth has led Astoria to represent the excellence in quality of espresso coffee machines.

Astoria Plus 4 You is a machine from Astoria’s Green Line: these machines have a low environmental impact and can reduce consumption by up to 47.6%* compared to traditional coffee machines.

Thanks to an innovative software that manages the automatic standby during operating pauses, the night Energy-saving feature and the intelligent adjustment of the temperatures, Plus 4 You distributes the power only where and when it is needed. Also, Plus 4 You automatically puts one or more groups into standby or “sleeping” mode when the work-load decreases and prepares them for full capacity when needed. If the barista needs all the groups to work, he can himself directly activate them from the keypad and they will be ready to operate at the programmed temperatures within 60 seconds.

We thus have flexibility, constant and consistent performance as well as the highest quality in the cup with definite savings and benefits for the barista, the roaster and the environment.

A resonant and powerful style and dynamic lines that alternate volumes and spaces as well as sensuous curves and imposing lines with a unique overall result: the design diffuses refinement and at the same time underlines the components of high technology that is the driving force of Plus 4 You.

The keypad is backlit to facilitate the search for functions and it is set at a suitable ergonomic height on the work front to optimize, speed up and improve the barista’s operations. With only a few easy movements the barista can serve out all the requested drinks.

The standard machine comes with a LED light that illuminates the working area and retractable raised cup grates for maximum versatility in all preparations.

The display is placed in the centre of the controls area and allows the barista to program and see the main parameters of the machine. Its ergonomics follow the same approach as a common mobile phone thus making its use immediate and intuitive.

Quality is ensured by an innovative control system that manages the single groups in all phases of coffee extraction, from pre-infusion to dispensing.

A thermal control device allows Plus 4 You to combine maximum performance with the most suitable temperature. Simultaneously, the system compares the parameters of the single servings with pre-set optimal values and, based on the characteristics of the coffee being used, provides real-time information on the product in the cup.

If coffee extraction is not perfect, Plus 4 You suggests on the display the appropriate corrective actions.

Each brewing group has its own tank and so it is possible to adjust the machine at different temperatures for different coffee blends and thus always guarantee maximum stability and yield in the cup.

Plus 4 You fully satisfies the needs of the roaster and of the barista. They will thus both guarantee their client an excellent product in the cup thanks to a machine that can be set up based on the characteristics of every blend of coffee. Modularity is one of the key concepts that identifies Plus 4 You: the steam boiler, the water reservoirs and the electronic control system allow independent operation of each group.

With Plus 4 You it is possible to:
  • Steam boiler and one coffee water reservoir for each group
  • Electronic temperature control of the coffee water reservoir
  • Electronic temperature control of the steam boiler
  • Electronic temperature control of each group
  • Display showing the pressure of volumetric pump
  • Display showing the ambient humidity
  • Display of water pressure in the hydraulic circuit
  • Programming of the washing cycles
Technical Characteristics

  • Steam boiler and one coffee water reservoir for each group
  • Electronic temperature control of the coffee water reservoir
  • Electronic temperature control of the steam boiler
  • Electronic temperature control of each group
  • Display showing the pressure of volumetric pump
  • Display showing the ambient humidity
  • Display of water pressure in the hydraulic circuit
  • Programming of the washing cycles
Standard functions & devices
  • Electronic dispensing of servings
  • Automatic water refill
  • Hot water mixing system
  • Electronically controlled cup heater
  • LED illumination of workspace
  • Raised groups
  • Retractable raised cup grates
  • RS 232 serial line
  • Multifunction key for guided navigation in the display menus
  • USB port for programming
Display functions
  • language options: Italian, English, German, French, Spanish, Portuguese
  • programming of the temperature of the coffee water tank for each group
  • programming of the temperature of each group
  • programming of the steam boiler pressure
  • counter of selections for each type of serving
  • diagnostic messages for easier service
  • manual or automatic energy saving settings
  • notice of required water softening
  • display of machine parameters
Optionals
  • Cappuccino maker
  • Milk frothing wand
  • Autosteamer with 4 selections
  • Built-in motor pump
  • Carbon-fibre & chrome
  • White & chrome
  • Red & Black
  • Grey & Black
Specifications
Technical data 2 group 3 group 4 group
Voltage (V) 240 240 240
Rated power (W) 4760 6100 7730
Steam Boiler (lt) 8 13 13
Group Boiler (lt) 1.2 x 2 1.2 x 3 1.2 x 4
Width (mm / in) 830 / 32.7 1070 / 42.1 1310 /51.8
Depth (mm / in) 580 / 22.8 580 / 22.8 580 / 22.8
Height (mm / in) 575 / 22.6 575 / 22.6 575 / 22.6
Weight (kg) 74 94 110
